JavaScript Prototype and Inheritance

Prototypes in JavaScript are very confusing, you may seem to understand it but still there may be occasions where you are just not sure what’s going on. Through this post, we’ll try to clear all the confusion and understand the inheritance better in JS.

Note: All code listed in the post is recommended to run in a repl of chrome or firefox dev tools for better understanding

Let’s begin from the beginning!

There are 8 kinds of data types in JS.

Primitive data types

  1. Number
  2. String
  3. Boolean
  4. Symbol
  5. BigInt
  6. Null
  7. Undefined

Non primitive data type

  1. 8. Object

Objects in JS are a collection of properties, where properties are basically key value pairs. In JS, everything except the primitives are objects. Inheritance in JS is a means of sharing these properties across objects.

JS implements Prototype based inheritance which is often termed as classless implementation of OO paradigm, because there’s no concept of blue print there. You can read more about Prototype based programming or Class based programming. Prototypal inheritance works in JS through the Prototype Chain by delegating behavior to objects using prototypes.

So what makes a Prototype Chain?

First of all there are two entities in JS language spec which are referred(kinda) to as a prototype. And this creates confusion. Let’s first understand [[Prototype]]. We’ll learn about the other prototype later in the post.

[[Prototype]] is an internal property present on all objects in JS. The value of [[Prototype]] of an object can be null or an object from which it can inherit properties.

Essentially, [[Prototype]] establishes a link (Prototype Link) between two objects which enables the child object to inherit properties from the parent object.

So, in what sense, an object is parent or child in this inheritance model? The parent object holds the properties which a child object may need to access. While, the child object tells who is its parent using the [[Prototype]] internal property. It’s an internal property, means we can’t directly access this property, like object.[[Prototype]].

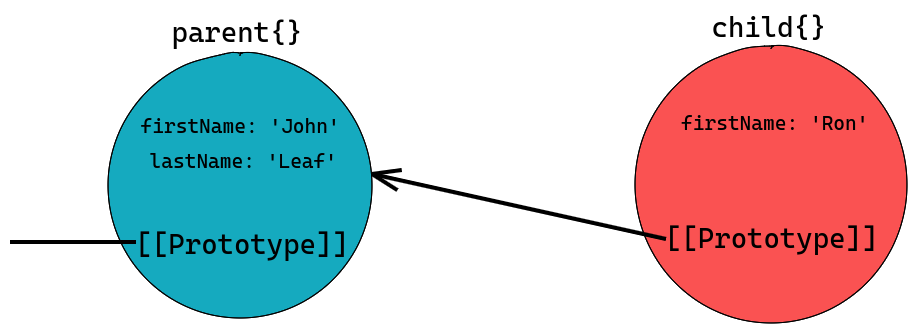

Let’s make a simple Prototype chain

const parent = { firstName: 'John', lastName: 'Leaf' }

const child = { firstName: 'Ron' }

console.log(child.lastName) // undefined

// Lets link the child and parent
Object.setPrototypeOf(child, parent)

Now, the value of child’s internal [[Prototype]] will be parent.


// the value of child's [[Prototype]] is parent

Object.getPrototypeOf(child) === parent // true

// child inherits the lastName property
console.log(child.lastName) // Leaf

// child doesn't own the lastName property
child.hasOwnProperty('lastName') // false

Then what’s a __proto__?

__proto__ is a getter/setter to change or see the internal [[Prototype]]. This is supported in browsers and now in ECMA spec as well, but not recommended for use though in favour of Object.setPrototypeof and Object.getPrototypeof.

child.__proto__ === parent // true

Can we change the inherited property?

No, we can’t change an inherited property from the child. But we can override it.

child.lastName = 'Green'

// now child object owns lastName property
child.hasOwnProperty('lastName') // true

// not the inherited property anymore, it's overridden
console.log(child.lastName) // Green

// parent's property remains intact
console.log(parent.lastName) // Leaf

For an Accessor property, we can get as well as set the inherited property through the child object

You would also be wondering how we got access to the hasOwnProperty method on child object, does it own the method? We’ll see in later section.


In the above code example, we explicitly made a [[Prototype]] link between two objects. Now lets see an example of an implicit [[Prototype]] link, which the language does for inheritance.

function Dog(name) {
  this.name = name
}

console.log(Dog.prototype) // { constructor: f Dog() {} }

All constructor function objects in JS have a prototype property on it, whose value is an object. So, what’s the purpose of this object? This object will act as parent, and contains properties which can be shared by the constructor instances. This object has a constructor property, whose value is the function object itself.

Dog.prototype.constructor === Dog // true

It may seem from the above expression that Dog is the constructor of Dog.prototype, but it isn’t the case. Don’t worry, we’ll see its use later.

Okay, let’s see inheritance in action

// create an instance of Dog
let foo = new Dog('Foo')

// foo is an object
console.log(foo) // { name: "Foo" }

If you are not sure, you should checkout how the new operator works. Eventually, it will set the internal [[Prototype]] of foo to Dog.prototype object.

// foo's constructor is Dog
foo.constructor === Dog // true

// foo doesn't own the constructor property
foo.hasOwnProperty('constructor') // false

This constructor property was inherited from Dog.prototype. So, now you understand the use of this property on Dog.prototype, it is for the prototype linked child objects, which can tell who is their constructor.

// create a shared property for Dog instances
Dog.prototype.legs = 4

// legs property won't be accessible on the Dog object
console.log(Dog.legs) // undefined

// foo will inherit legs from Dog.prototype
console.log(foo.legs) // 4

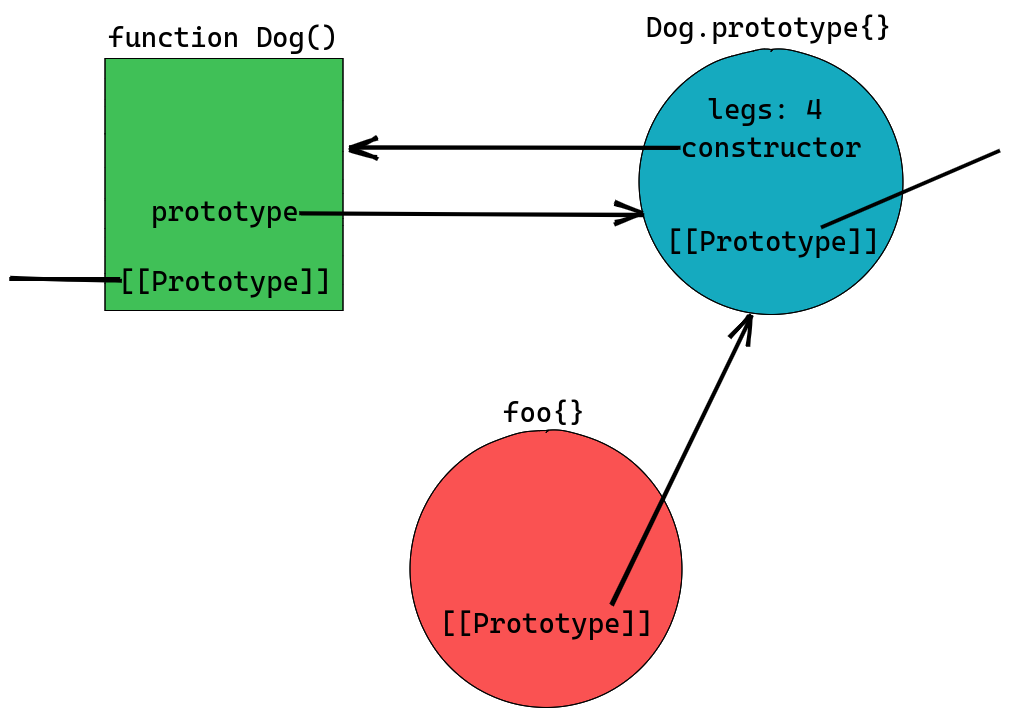

Let’s see a diagram for this prototype relationship.

Diagram

Note: There may be more properties on objects than the ones listed in the diagrams, only the here concerned ones are listed

Recap prototype vs [[Prototype]]

  • prototype is the parent object in this inheritance model which actually owns the properties. This object is predefined by JS in all constructor function objects.

  • [[Prototype]] is an internal property present on all objects in JS. The value of [[Prototype]] of an object can be null or an object from which it can inherit properties.


A longer Prototype chain

Remember, we’ve been using hasOwnProperty method on objects above. But, does every object has this method?

foo.hasOwnProperty('hasOwnProperty') // false

// So, has it inherited from Dog?
Dog.prototype.hasOwnProperty('hasOwnProperty') // false

foo doesn’t have the property, neither its parent Dog.prototype has this property. So, it’s time to climb up the Prototype chain. Let’s see.

Object.getPrototypeOf(Dog.prototype) // {constructor: ƒ, __defineGetter__: ƒ, __defineSetter__: ƒ, hasOwnProperty: ƒ, __lookupGetter__: ƒ, …}

Object.getPrototypeOf(Dog.prototype).hasOwnProperty('hasOwnProperty') // true

// or we can
Dog.prototype.__proto__.hasOwnProperty('hasOwnProperty') // true

Seems, familiar, and this object owns hasOwnProperty method. It’s the Object.prototype object.

Object.getPrototypeOf(Dog.prototype) === Object.prototype // true

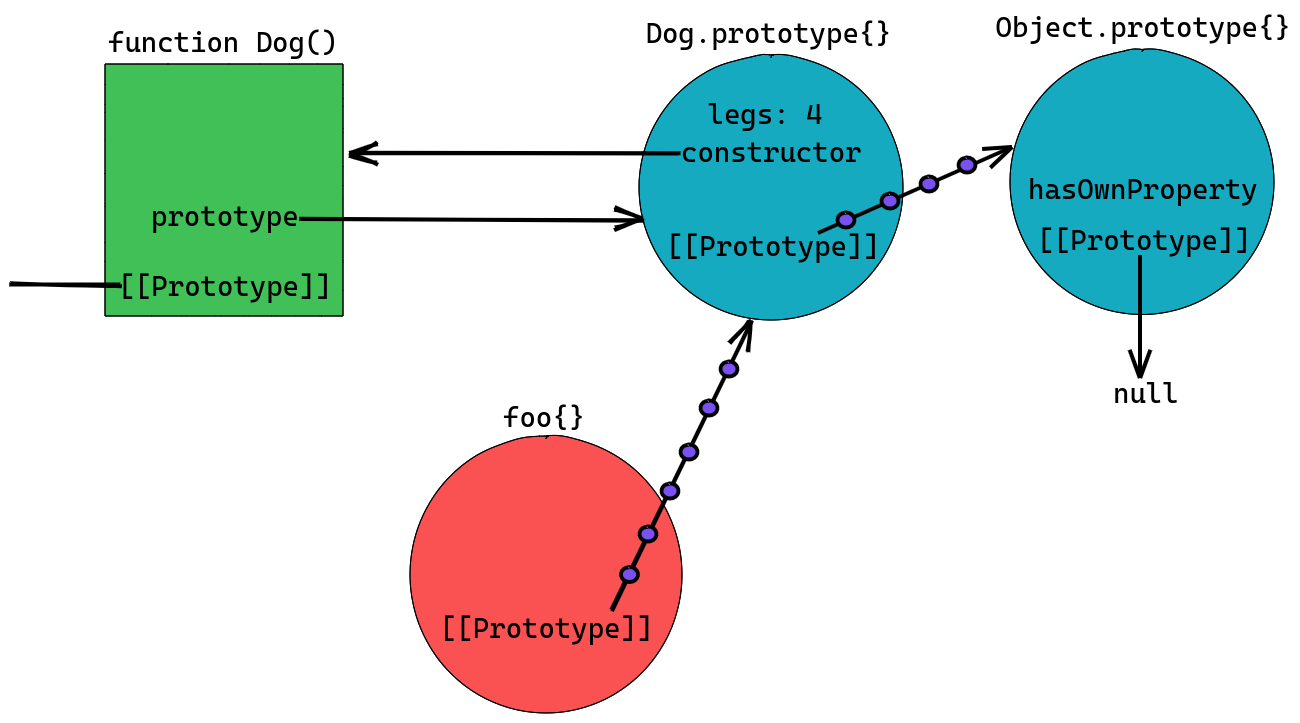

So, foo here has been able to access this method of Object.prototype by climbing up the chain after not finding it on it’s parent. The prototype chain climbing is demonstrated through dots and arrows in the diagram below.


So, that’s it. When we access any property on an object in JS, if it’s not present on the object, it will look up the prototype chain for that property, even going upto many levels till the end of the chain.


instanceof operator

Syntax:

foo instanceof Dog

instanceof operator tests whether Dog.prototype in present in the Prototype chain of foo. The left side of instanceof should be an object and right side should be a constructor function.

// Dog.prototype is in foo's prototype chain
foo instanceof Dog // true

// Object.prototype is in foo's prototype chain
foo instanceof Object // true

All functions in JS are instance of the Function constructor.

// Dog constructor function is instance of Function
Dog instanceof Function // true

// Dog's [[Prototype]] is Function.prototype
Object.getPrototypeOf(Dog) === Function.prototype // true

All objects in JS declared using the {} Object literal notation inherit from Object.prototype. Object is also a constructor. So, these objects are instance of Object constructor.

let myObj = { type: 'demo' }

// myObj's [[Prototype]] is Object.prototype
Object.getPrototypeOf(myObj) === Object.prototype // true

// myObj is instance of Object
myObj instanceof Object // true

Note: objects can also be created by explicitly specifying it’s [[Prototype]] using Object.create().


Prototypes everywhere

So, we discussed that all objects in JS have [[Prototype]] internal property and constructor functions also have a prototype property. Now thinking about Function, Object constructors, functions that we create using function keyword, objects created using {}, a Date object or an array, basically every object in JS. How everything fits together in this prototype based inheritance in JS?

or some weird looking things

Object instanceof Function // true

Function instanceof Object // true

Function instanceof Function // true

Object instanceof Object // true

We’ll be able to justify all these expressions after understanding their prototype relationship.


The complete picture

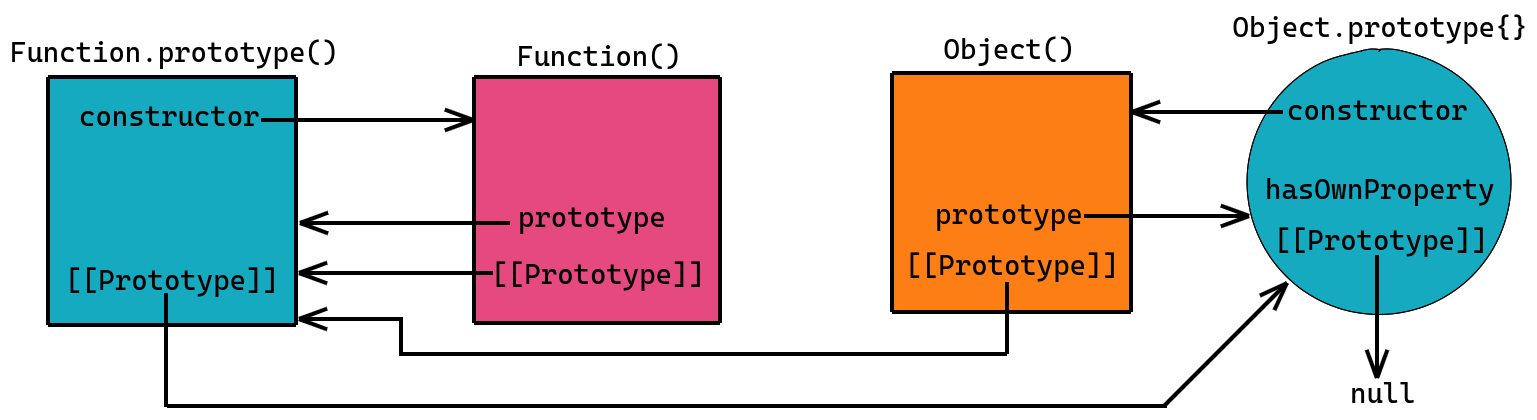

After fiddling around these objects and their prototype chain, I was able to draw this diagram.

Diagram

Key takeaways from this diagram:

  • Function and Object are constructor function objects.
  • [[Prototype]] of Object.prototype is null which marks the end of prototype chain.
  • Function.prototype is a function object, but is not a constructor and doesn’t even have a prototype property just like other function objects. It should not have been a function object.
  • We can now easily deduce the above listed instanceof expressions.

Let’s see one example;

Function instanceof Object // true

This means we need to find whether Object.prototype is in Function’s prototype chain or not, which can be easily found by following the [[Prototype]] links. Try all the instanceof expressions used above.

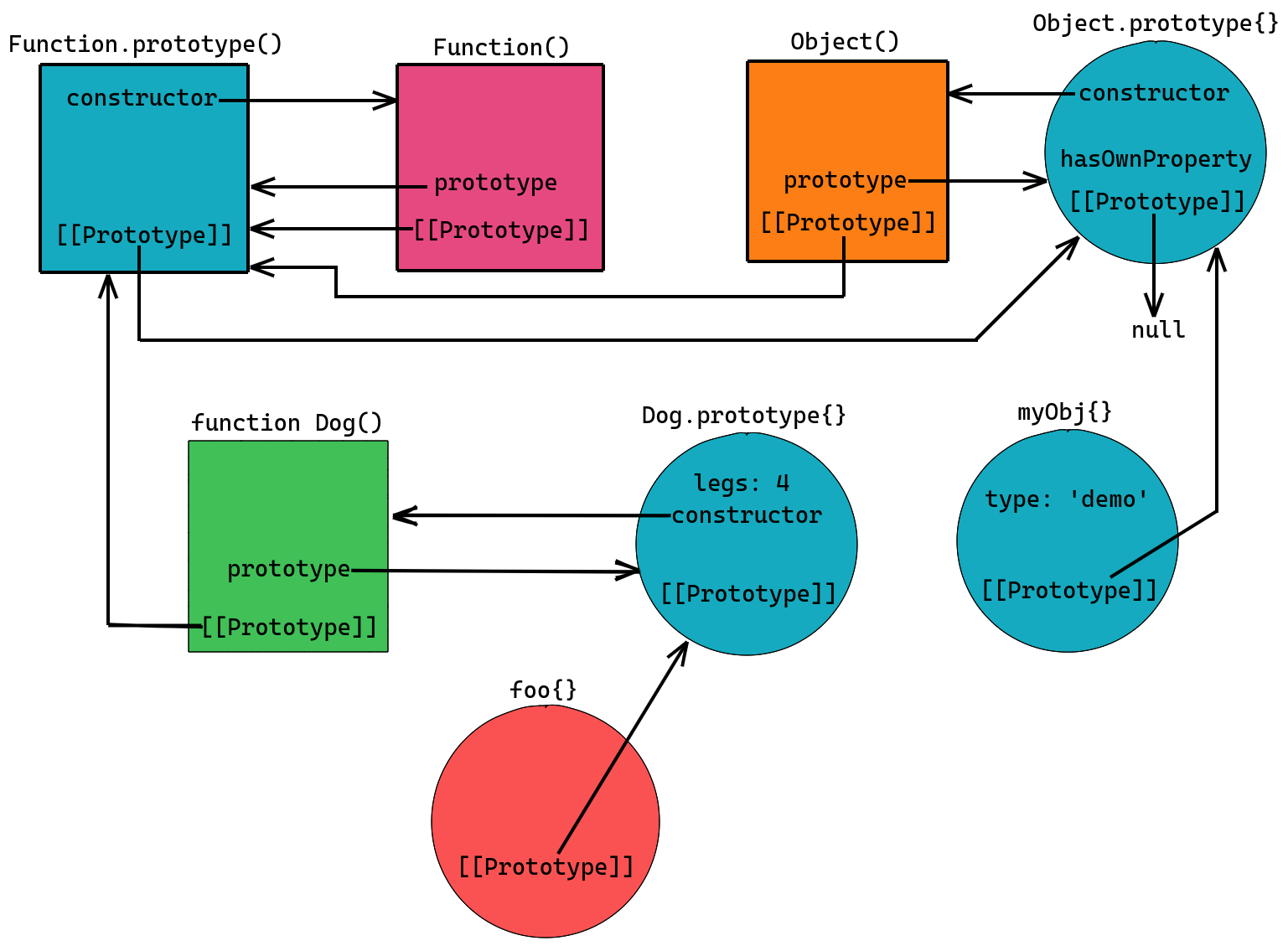

With the objects and function used earlier, the whole prototype relationship looks like this.


I hope this post helped you understand prototype based inheritance based in JS. I would recommend to play with these objects in your browser’s console to solidify the concepts.

Thanks for reading and let me know your thoughts :)
